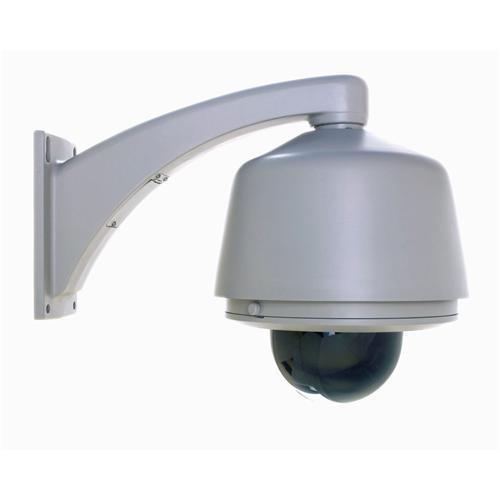

22X PTZ Speed Dome Camera(With Wall Mount Bracket)

Product Categories

Beijing RYLink Technology Co., Ltd.

Contact Now

Ask Lasest Price
Model Number :	WS-HS22W
Delivery Time :	within a week (depends on your quantity)

Add to Cart

Features
—†Built-in English OSD Menu with password protection —†Activities(scan,preset,pattern etc.) can be schedeled when the PTZ camera parks or powers up —†Alarm input,alarm output,alarm action —†Proportional pan automatically reduces or increases the pan/tilt speed as per zoom times —†Windows blanking:8 areas —†The heater startup mode is programmable —†Manual-controlled scan area adjustable —†New and easy installation design with EasyClip
Specification
Model	WS-HS22W
Signal Format	PAL/NTSC
Image Sensor	1/4-type Exview HAD CCD(CNB Module)
Resolution	480TVL
S/N Ratio	Not less than 50DB
Illumination	0.001Lux
Day/Night	Yes
Optical Zoom	22X(Day/Night)
Digital Zoom	12X
AGC	Auto/Manual
BLC	Auto/Manual
Pan/Tilt Speed	Pan:0.05ï½ž400°/sec,Tilt:0.03ï½ž240°/sec
Pan/Tilt Range	Pan:0ï½ž360° continuous; Tilt:0ï½ž92°,auto filp
Auto Accuracy	Auto switch from 0 to 54 preset positions sequentially
Pattern Scan	4 routines of pattern scan
Track Accuacy	0.05 Degree
Presets	256
Comm.Port	RS485
Band Rate	1200bps, 2400bps, 4800bps, 9600bps, 19200bps
Zones	8
Alarms	4 Inputs / 2 Outputs
Operating Temp	“25°C ~ +70°C (w/o heater) / -50°C ~ +70°C (with heater)
Power	DC12V / AC24V, 20W (with no heater) or 50W (with heater)
