HD USB wireless Auto Tracking Video Conference Camera skype
conference microphone speaker Manufacturer.
Hawkvine HD Remote PTZ Camera HV-VC001 Features:
●1/2.8" CMOS image sensor, up to 2.14MP;
●20X optical, 12X digital zoom, up to 72.5°FOV;
●Video formats: 1080P/60, 1080P/50, 1080p/30, 1080p/25, 1080i/60,
1080i/50, 720p/60, 720p/50, 720p/30, 720p/25;
●Simultaneously outputs of HD and SD videos;
●Video interfaces: DVI-I (for DVI-D, HDMI, YPbPr, VGA, 5-BNC etc),
HD-SDI;
●Control: RS-232IN, RS-232OUT, RS-422/RS-485 etc;
●On-screen display menu with simple program;
●Has image flip function for stand and suspended installations;
●Support VISCA protocols, daisy chain;
●Come with IR remote controller;
●New design of PTZ mechanism with higher precision and reliability.
| Model No. | HV-VC001A | HV-VC001B |
| Image Sensor | 1/2.8" CMOS, 2.14MP |
| HD Signal Format | 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50,
720p/60, 720p/50, 720p/30, 720p/25 |
| SD Signal Format | PAL,NTSC |
| Focal | f=4.7 mm - 94.0 mm | f=3.9 mm - 46.8 mm |
| IRIS | F1.6 - F3.5 | F1.6 - F2.8 |
| Zoom | Optical: 20X; Digital: 12X | Optical: 12X; Digital: 12X |
| Shortest Focus Distance | 10 mm - 1,000 mm |
| Field of View | 59.5°- 2.9° | 72.5°- 6.3° |
| Focus | Auto, Manual, PTZ Trigger AF, One Push |
| Min. Illumination | 0.5lux(Color), 0.1lux(B/W) |
| Shutter Speed | 1/1 ~ 1/10.000s |
| AGC | Auto/Manual |
| BLC | Auto, Indoor, Outdoor, One Push, Manual, Auto Track |
| AE Control | Auto, Manual, Shutter Priority, Aperture priority |
| S/N Ratio | ≥50dB |
| PTZ |
| Pan Range | -170°~ 170° |
| Tilt Range | -30°~ 90° |
| Pan Speed | 0.1°~ 120°/s |
| Tilt Speed | 0.1°~ 90°/s |
| Preset Number | 256 |
| OSD | Yes |
| Image Flip | Yes |
| Interface |
| HD Video Output Interface | DVI-I (for DVI-D, HDMI, YPbPr, VGA,5-BNC), HD-SDI |
| SD Video Output Interface | CVBS |
| Control Interface | RS-232IN, RS-232OUT, RS-422/RS-485 |
| General |
| Protocol | VISCA and Support Daisy Chain, Pelco-D, Pelco-P |
| Spectra Address | 0~63 |
| Power | DC12V |
| Power Consumption | <15W |
| Operating Temperature | 0°C ~ +40°C |
| Storage Temperature | -20°C ~ +60°C |

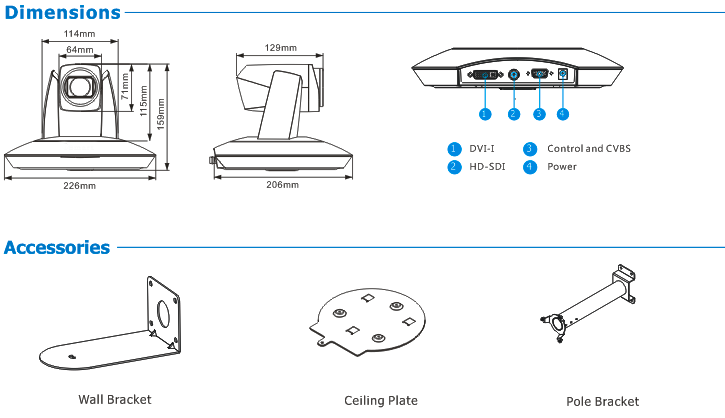

| Dimension (W x H x L) | 226mm x 159mm x 206mm |
| Weight | 1.7KG |
| Body Colour | Grey |
