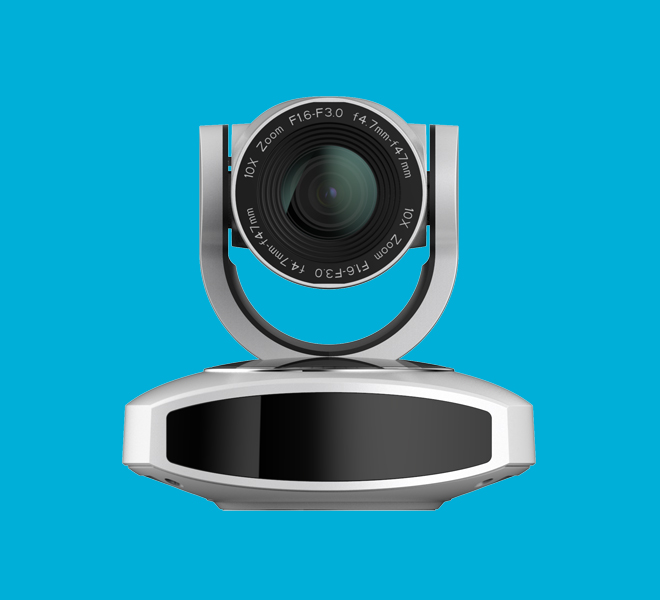

Hawkvine VC026 HD Video Conference Camera Multiple Zoom Lens Video
Interfaces Protocols X5 X10 Digital Zoom.
VC026 KEY FEATURES:
1.Superb High-definition Image
VC026 employs 1/2.8 inch high quality CMOS sensor. Resolution is up
to 1920×1080 with frame rate up to 60fps.
2.Various Optical Zoom Lens
VC026 has 5X/10Xptical zoom lens for options. 5x zoom lens is with
83.7 ° wide view angle without distortion.
3.Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable
auto-focusing.
4.Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced
2D/3D noise reduction technology is also used to further reduce the
noise, while ensuring image sharpness.
5.Multiple video output interfaces: Support HDMI, SDI, USB and LAN
5.1Multiple Video compression: Support H.265/H.264 video compression
6.Audio Input Interface
Support 16000,32000,44100,48000 sampling frequency and
AAC,MP3,G.711A audio coding.
7.Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy
to link streaming media server (Wowza,FMS)
8.Multiple Control Interface:
RS232, RS485; RS232 support daisy chain, convenient for
installation on projects.
9.Multiple Control Protocols: Support VISCA, Pelco-D, Pelco-P and support auto-recognize
protocol.
9.1Low-power sleep function: Support low-power sleep/wake up,the consumption is lower than
400mW under sleep mode
10.Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism,VC026 camera works
extremely quiet and moves smoothly.
11.Multiple Remoter Control
User can choose to use IR remoter or wireless remoter according to
the working environment. The 2.4G wireless remoter will not be
affected by angle, distance or infrared interfere. Support remoter
signal pass through function, which is convenient for back-end use.
Preset
12.Support up to 255 presets (10 presets by remoter )
Tele-education,lecture capture,Webcasting,
Videoconferencing,Tele-training,Tele-medicine, Interrogation and
Emergency command systems.
| Model Number | VC026A | VC026B |
| Camera Parameter |
| Image Sensor | 1/2.8Inch High Quality CMOS Sensor |
| Effective Pixels | 2.07MP, 16:9 |
| Video Format | SDI/HDMI Video Output Format 1080P60/50/30/25/59.94/29.97；1080I60/50/59.94；720P60/50/30/25/59.94/29.97 USB3.0 Video Output Format 1)USB3.0:1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30;
640X360P30; 640X480P30; 352X288P30; 960X540P30; 800X600P30 2)USB3.0(USB2.0 Supported); 960X540P30; 640X360P30; 1280X720P10/15;
720X576P50； 720X480P60; 640X480P30; 352X288P30 USB2.0 Video Output Format:176×144/320×240/320×180/352×288/640×480/720×480/720×576/ 640×360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080 P30/25/20/15/10/5 |
| Optical Lens | f＝3.1～15.5mm | f＝4.7～47mm |
| View Angle | 83.7°(Wide) | 6.43°(Tele)60.9°(Wide) |
| Iris | F1.8 – F2.8 | F1.6 – F3.0 |
| Digital Zoom | X5 |
| Low Illumination | 0.5Lux(F1.8, AGC ON) |
| DNR | 2D﹠3DDNR |
| White Balance | Auto / Manual/ One
Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto / Manual/ One Push/ |
| Electronic Shutter | Auto / Manual/ |
| BLC | On/Off |
| WDR | OFF/ Dynamic Level Adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma
curve |
| SNR | >55dB |
| Interface and Protocol |
Model No/Interface
| VC260-05/10-SDI Interface:SDI, LAN, RS232(Input), A-IN VC260-05/10-HDMI Interface:HDMI, LAN, RS232(Input), A-IN VC260-05/10-HD-BaseT Infterface: HDBaseT, LAN, RS232(Input), A-IN VC260-05/10-U3 Interface:USB3.0, LAN, RS232(Input) VC260-05/10-U3+HDMI Interface:USB3.0, HDMI, LAN, RS232(Input) VC260-05/10-U2 Interface:USB2.0, LAN, RS232(Input) |
| Video Output | SDI, HDMI, USB3.0, USB2.0, LAN |
| Video Stream | Dual Stream |
| Image Multi Code Source Output | Supported (SDI/HDMI/USB3.0/USB2.0, LAN can be with different Code
Source) |
| Video Compression | H.265,H.264 |
| Audio Compression Format | A-in: Double track 3.5mm linear input; |
| Aiduo Output | SDI, HDMI, LAN |
| Audio Compression Format | AAC, MP3, G.711A |
| LAN | 100M LAN Port(10/100BASE-TX) |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181; Support VISCA Control Protocol,
Support Remote Update and Reset |
| Control Port | RS232(Circuit),RS485 |
| Control Protocol | Protocol:VISCA/Pelco-D/Pelco-P；Baud Rate:115200/9600/4800/2400bps |
| Power Supply | HEC3800 Outlet(DC12V) |
| Power Adapter | Input AC110V-AC220V, output DC12V/1.5A |
| Power Input | DC12V±10%,1A(Max) |
| Power Consumption | 12W(Max) |
| PTZ Parameter |
| Pan/Tile Rotation | -170°～+170°,-30°～+90° |
| Pan/Tile Controller Speed | 0.1 ～60°/Second, 0.1～30°/Second |
| Preset Speed | Pan:60°/Second,Tilt:30°/Second |
| Preset Numbers | 255 Points Preset(10 points By Remote Controller) |
| Other Parameter |
| Storage Temperature | -10℃～+60℃,20%～95% |
| Working Temperature | -10℃～+50℃,20%～80% |
| Dimension | 151.2mmX152.5mmX126.7mm |
| Weight | 1.4kg |
| Usage | Indoor Only |
| Package | 12V/1.5A Power supply, Remote Controller, Manual, Warranty Card |
| Accessories Optional | Mount (Extra Cost) |
